Motorhomes have two electrical power systems: mains (230V AC, usually from a hook-up point) and 12V DC, which powers lights, pumps and so on. The latter is usually supplied from the leisure battery.
There are times when it’s useful to have access to a 12V DC supply remote from the vehicle (for example, driving a pump when replenishing the fresh-water tank from a portable container, extra lighting or portable cooling fans).
This project details the construction of a rechargeable power supply that has a capacity of 2.5Ah with a single bank of 10 AA batteries, rising to 10Ah with the four-bank configuration.
It also offers the convenience of two USB 5V sockets, suitable for charging phones and tablets. A CREE LED light is built into the case body, providing a handy torch function. The power supply can be charged with a smart electronic charger from a mains supply, via an adaptor or 12V DC source, such as a dashboard lighter socket. The charger ensures batteries are not overcharged, by switching off at the fully charged point. It can also supply a trickle charge to keep the batteries topped up, if needed.
The charge state of the power pack can be monitored using the in-built digital voltmeter to avoid a potentially damaging fully discharged state.
The capacity of the supply is 2.5Ah with one bank of 10 AA cells connected in series, increasing to 10Ah with four banks connected in parallel. Each bank can supply 2A. The fuse should be 5A for the single bank, 6A for two banks and 10A for three or four.
The batteries used here are Duracell AA Duralock NiMH, with a capacity of 2500mAh (2.5Ah), which do not suffer ‘charge drain’ when not being used. This means the power supply can be charged and stored in the knowledge that it will perform when required.
It is absolutely essential not to mix manufacturers and battery capacities.
Parts and tools
■ 1 ABS enclosure 200 x 120 x 75mm (main housing)
■ 1 ABS enclosure 80 x 55 x 35mm (12V to 19V converter housing)
■ 1-4 AA battery carriers (10-cell variant)
■ 1 rocker switch with ‘LED on’ indicator
■ 1 momentary ‘on’ push button
■ 1 small toggle switch (for torch)
■ 1 20mm fuse carrier (bulkhead mounting) and fuse to suit capacity chosen (see text)
■ 1 voltmeter*
■ 1 cigar lighter socket*
■ 1 dual 5V USB socket*
■ 1 12-19V converter
■ 2 cigar socket plugs
■ 8 M3 x 10 screws + nuts + washers

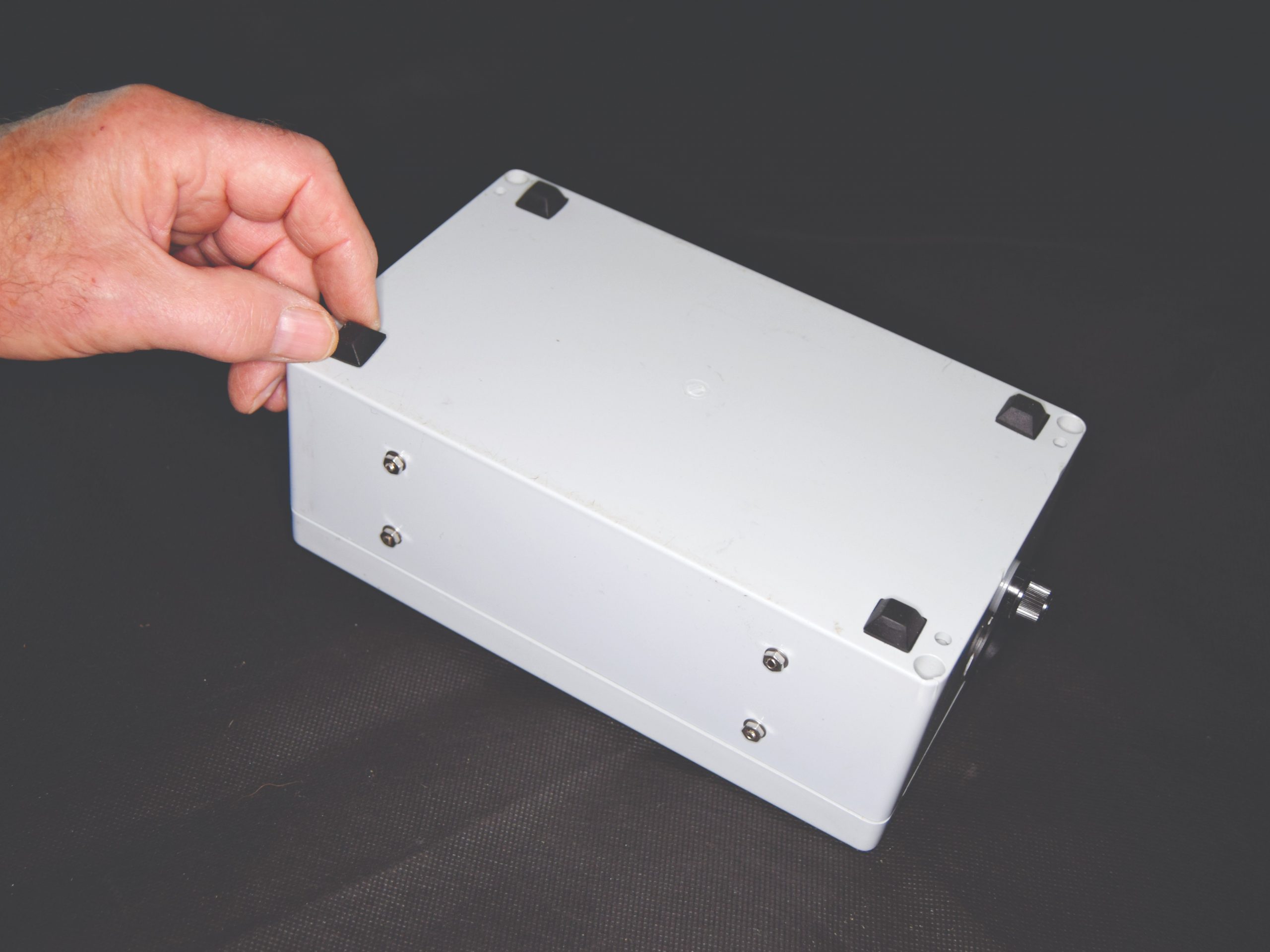

■ 4 rubber feet
■ 1 Eagle Eye CREE LED white light
■ 1 smart charging unit suitable for NiMH cells (12V)
■ AA batteries to suit (see text)
■ Crimp connectors, wire, heatshrink sleeving
■ Screwdrivers, pliers, soldering iron, crimp tool, heat gun, drills consisting of 1-1/8” wood bit and a set of metal drills
■ Cordless drill or similar
* These three items can be purchased as a ‘trio’ with a mounting panel
This project details the construction of a rechargeable power supply that has a capacity of 2.5Ah with a single bank of 10 AA batteries, rising to 10Ah with the four-bank configuration
